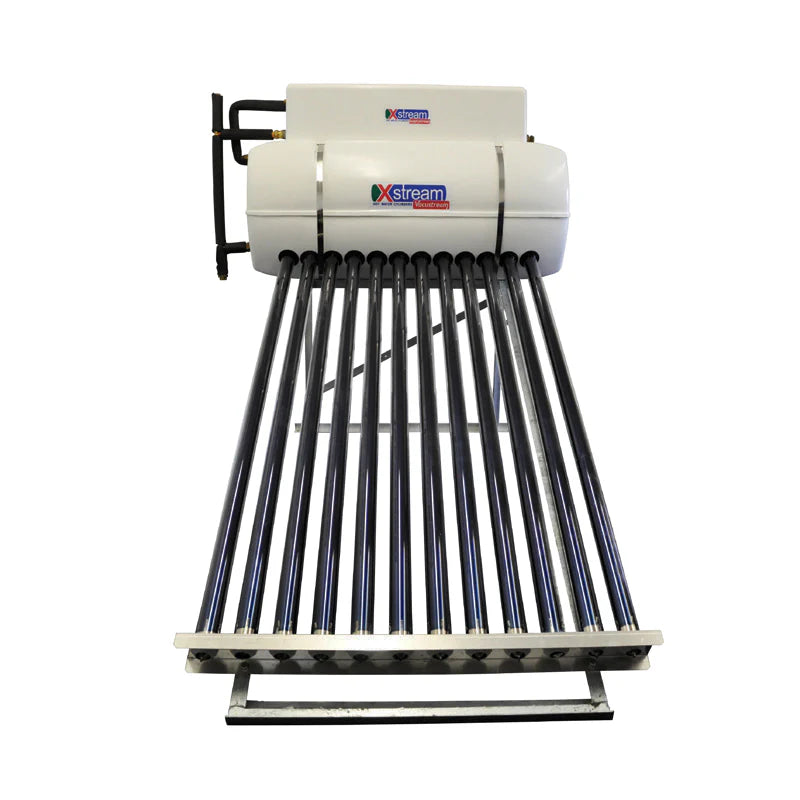

Xstream Vacustream 110L Stratification Solar Water Heating System with 1kW Element

Our Vacustream systems are supplied in kit format as a complete solar system and comprises of:

• The main storage tank (Vacustream).
• Supply tank (Supplystream).
• Cobra float valve fitted.
• All insulated pipe work between Vacustream and Supplystream in copper.
• Galvanised adjustable frame.
• 12 x tubes, grommets and end caps.

Design features

• Balanced pressure is optional on hot and cold water- the float valve positioned inside the Supplystream can feed both the Vacustream (from where the hot water is drawn) and the cold-water supply to the shower.
• The Vacustream is available either with or without electrical back-up. The positioning of the element, being in the upper half of the tank ensures minimum electrical usage.
• Expanded water from the Vacustream is dumped entirely into the Supplystream for re-use, ensuring no water wastage whatsoever.
• A simple, sturdy, easy to erect adjustable galvanised frame with all interconnecting copper pipe work ensures effortless installations.
• Our design makes provision for perfectly round holes where the tubes are located into the Vacustream thus preventing leaks.
• With raised fittings for expanded water from the inner tank we ensure there is no air trapped inside the Vacustream.

Design aspects

• Material selection is crucial as mentioned
