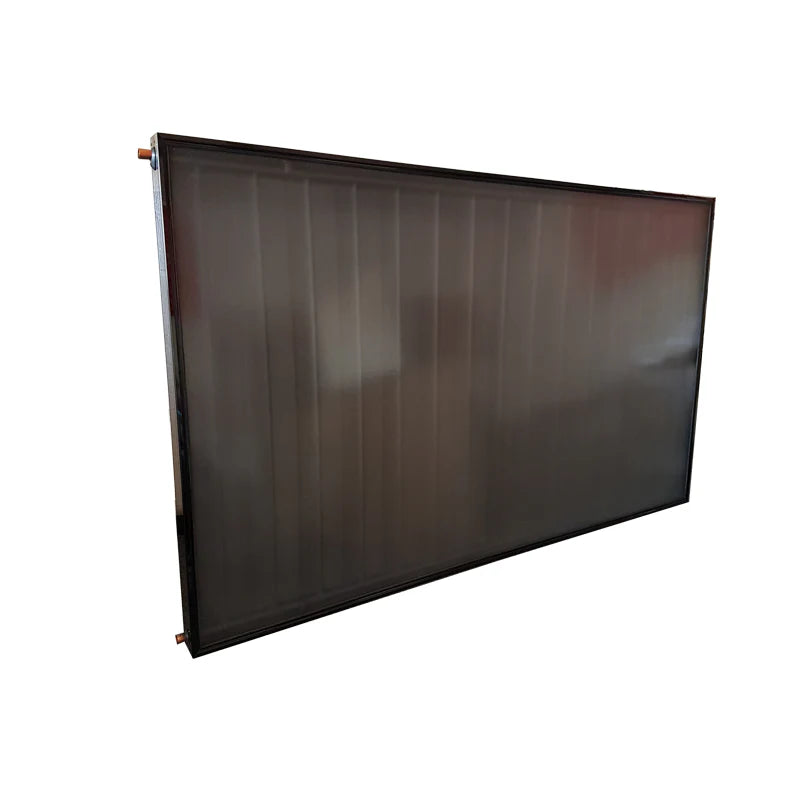

SunScan 2.4m² Horizontal Flat Plate Collector

Features and Benefits
 • Unique Copper Aluminium Selective coating offers higher adsorption, reduces loss, longer life.
 • Unique air filtration vents that help to prevent moisture build up on the inside of the panel.
 • Low Iron prismatic glass offers max transmittance, less reflected radiation.
 • Ripped absorber surface offers higher performance.
 • Aluminium Anodized Casing, no rust.
 • Risers are sonic welded.
 • Probe pocket measure temperature.
 • 5 year warranty.

Technical Specifications
 • Overall area (m²) - 2.4.
 • Absorber area (m²) - 2.21.
 • Aperture area (m²) - 2.24.
 • Risers - 9. 11.
 • Dimensions (L x W x H)(mm) - 2005 x 1200 x 80.
 • Weight (kg) - 38Kg.
 • Absorber Capacity (L) - 1.99.
 • Frame material - Aluminium-alloy.
 • Surface Material - Aluminium-alloy.
 • Back plate - Chromodeck.
 • Absorber Sheet - Cu/Al, oxide film.
 • Absorption [%] - 94%.
 • Emission [%] - 8 (80°±5°).
 • Manifold Ø (mm) - Ø 22 x 0.75.
 • Risers Ø (mm) - Ø 10 x 0.5.
 • Insulation Material - Glass Wool.
 • Side Insulation Thickness - 25mm.
 • Back Insulation Thickness - 35mm.
 • Glass - Woven ultra-white toughened solar safety glass.
 • Cover Thickness - 3mm.
