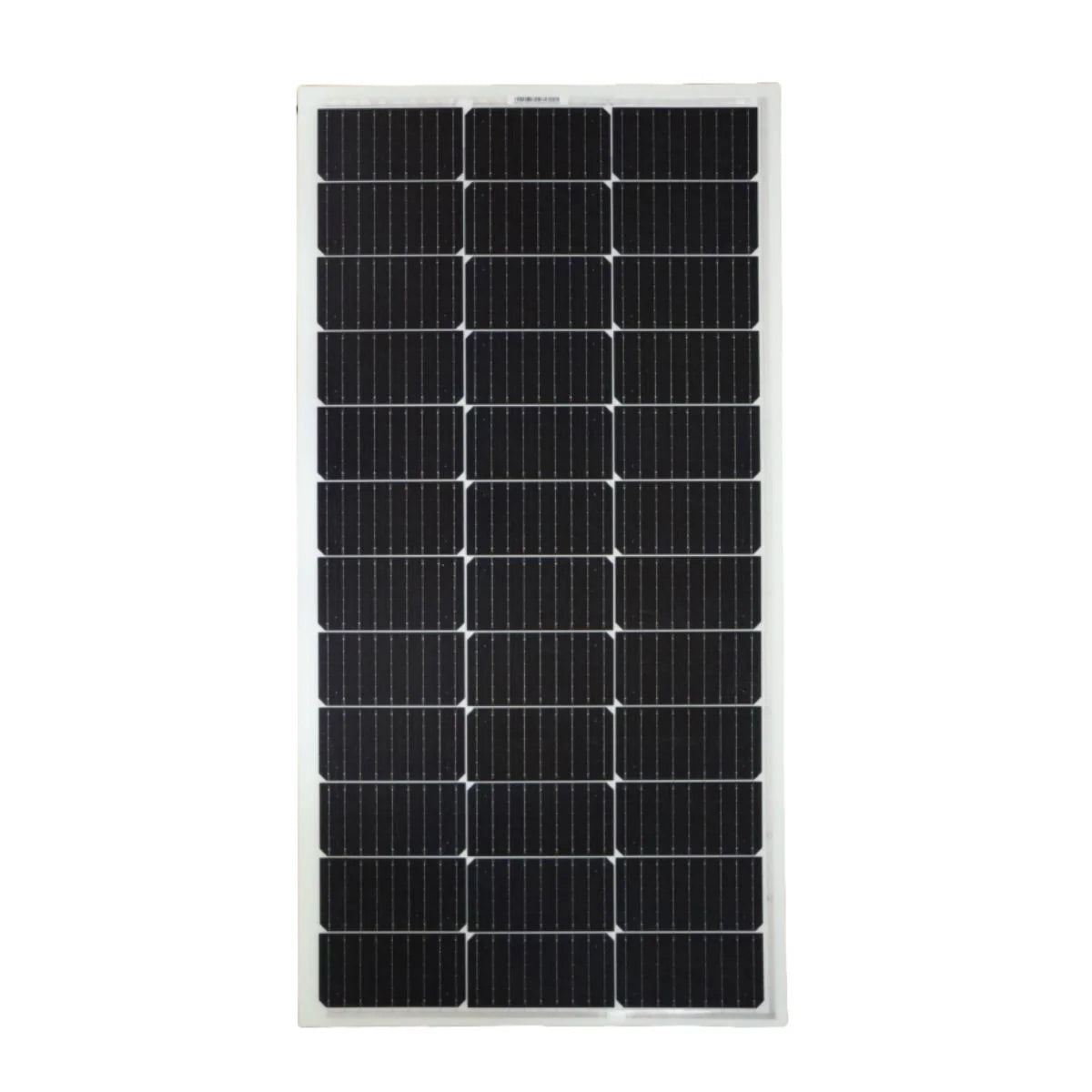

SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors

R 1,500.00
R 1,500.00
-0%
Tax included. Shipping calculated at checkout.
Only 450 items in stock! Out of stock!

Guaranteed safe checkout

    Product Description

    Features:

    • Ultra-light: Weighs only 2.1kg, 70% lighter than traditional glass modules.
    • Aesthetic: Seamless integration with underlying installation surface.
    • Effortless Installation: Quick Bonding installation method requires no roof penetration, reduces installation time by 40%, and eliminates mounting hardware.
    • Durable: First glassless module to pass standard durability tests including PID, salt mist, and ammonia corrosion resistance.

    5-Year Warranty

    Electrical Specifications

    Maximum Power Voltage (Vmp) 21.2 V
    Maximum Power Current (Imp) 4.75 A
    Open-circuit Voltage (Voc) 25.2 V
    Short-circuit Current (Isc) 5.12 A
    Module Efficiency 15.7%
    Operating Temperature -40°C to 85°C
    Maximum System Voltage 600 V DC (IEC)
    Maximum Series Fuse Rating 20 A
    Application Class Class A
    Power Tolerance

    0 / +5 W





    Mechanical Characteristics

    Product Model SMF100F-3X12UW
    Solar Cell Mono (6 inches)
    No. of Cells 36 (3 × 12)
    Module Dimensions 1093 × 552 × 2 mm
    Weight 2.1 kg
    Backsheet White
    Junction Box IP68 rated
    Output Cables Photovoltaic cable
    SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors
    SunMan Flexible 100W Ultra-Light Mono Solar Panel with Front Connectors

    R 1,500.00
