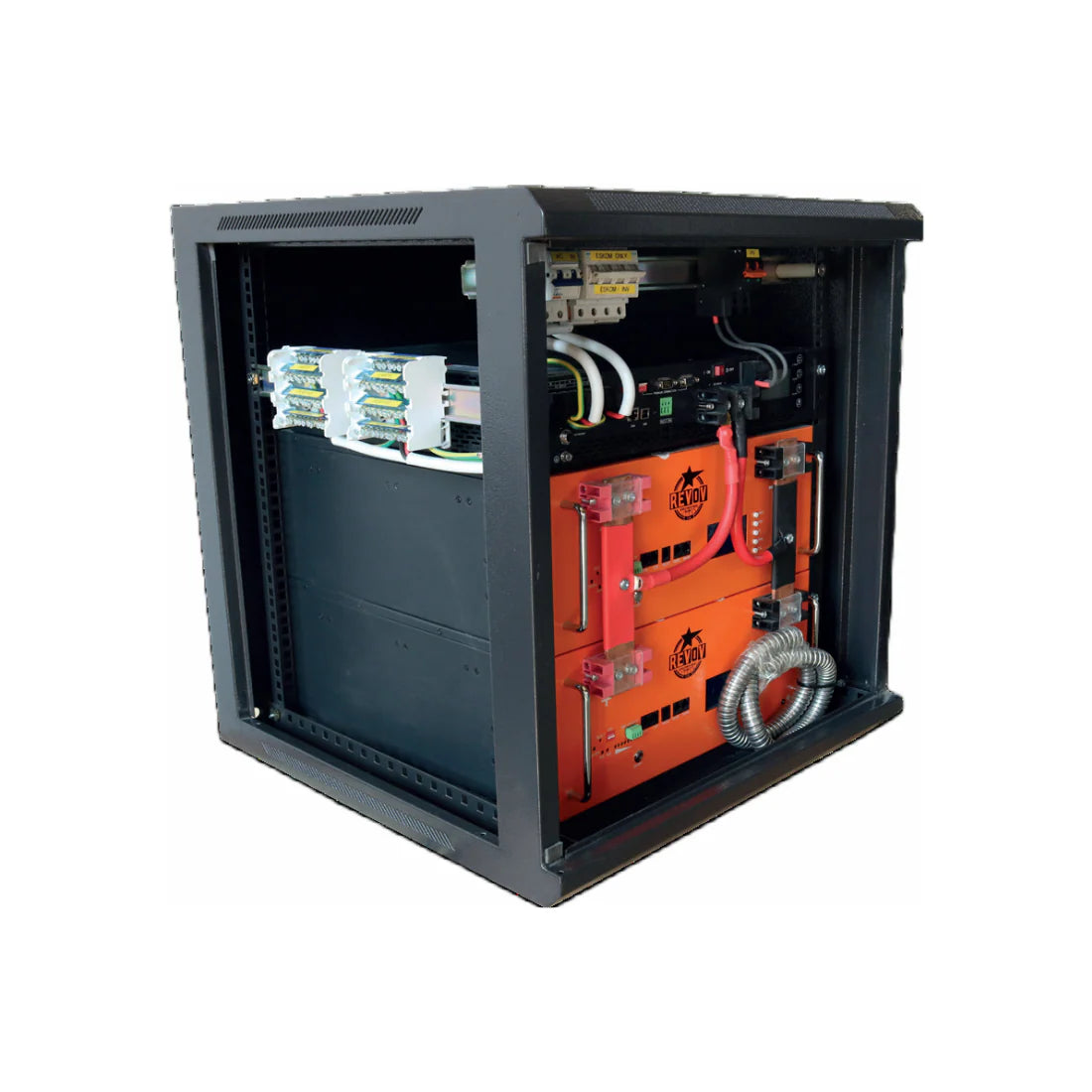

REVOV Cube 100Ah 5.1kWh 51.2V LiFePO4 Battery Backup System

The REVOV CUBE is a compact, fully integrated, and all-in-one backup system with pre-programmed 5kVA inverter with 4000W MPPT, pre-connected batteries 5.1kWh/10.2kWh and BMS. The entire unit contains all the necessary wiring and correct fusing, thereby making it quick to install and easy to store. The complete 5.1kWh /10.2kWh units are perfect for residential or small businesses requiring backup. This DC system stores energy, detects grid status, and automatically supplies your home or business when the national grid is compromised.

Features

• The CUBE is a 5kVA 5.1kWh/10.2kWh pre-configured UPS Inverter with an immediate backup transition from grid to battery power.
• Provision for the attachment of solar panels with built-in MPPT solar charge controller, capable of 4000W input at 130VDC.
• Warranted for daily cycling with built in protection.
• Pure Sine Wave AC Output- long-lasting and safe, with no damage to appliances.
• Optional monitoring function.
• Three phase & parallel configurations available on request (3 CUBE units).

Technical Specifications

• Output
• Transfer Time: Max 20ms.
• Waveform: Pure Sine Wave.
• Power Output: 4200W.
• Max Peak Power Output: 5000W for 10sec.
• Voltage: 230V.
• Battery
• Nominal Voltage: 51.2VDC.
• Nominal Capacity: 100Ah.
• Bulk/Absorption
