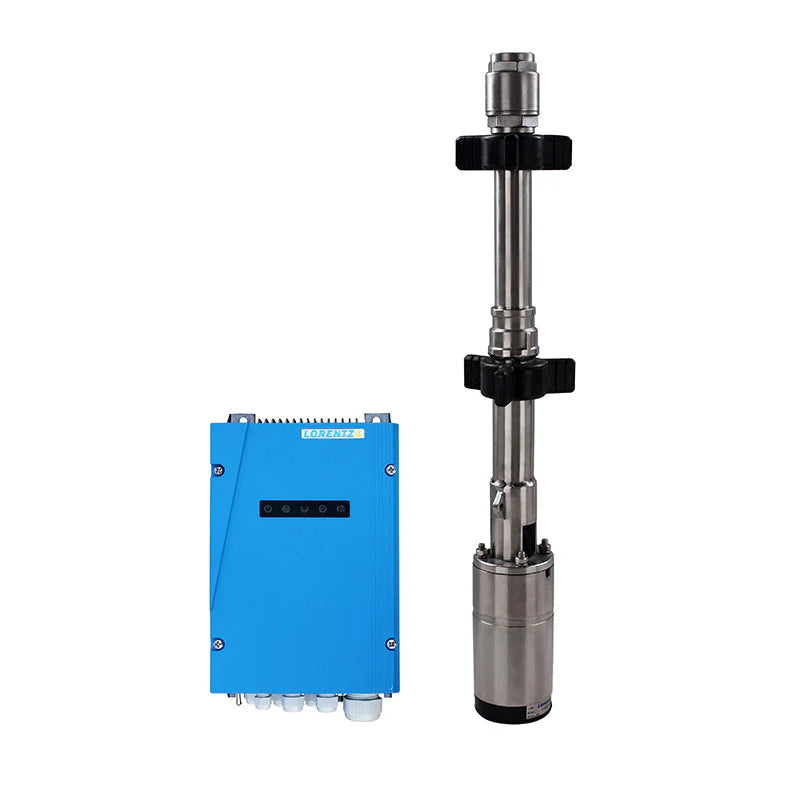

Lorentz PS2-600 HR 07 Solar Powered Pump

System Overview

• Head max.: 70 m.
• Flow rate max.: 0.72 m³/h.

Technical Data
Controller PS2-600 HR-07
Features

• Controlling and monitoring.
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature.
• Integrated MPPT (Maximum Power Point Tracking).
• Battery operation: Integrated low voltage disconnect.

Specifications

• Power max.: 0,70 kW.
• Input voltage max.: 150 V.
• Optimum Vmp**: > 68 V.
• Motor current max.: 13 A.
• Efficiency max.: 98 %.
• Ambient temp.: -40...50 °C.
• Enclosure class : IP68.

Motor ECDRIVE 600-HR
Features

• Maintenance-free brushless DC motor.
• Water filled.
• Premium materials, stainless steel: AISI 304/316.
• No electronics in the motor.

Specifications

• Rated power: 0,70 kW.
• Efficiency max.: 92 %.
• Motor speed: 900...3 300 rpm.
• Insulation class: F.
• Enclosure class: IP68.
• Submersion max.: 150 m.

Pump End PE HR-07

• Non-return valve.
• Premium materials, stainless steel: AISI 304.
• Helical rotor pump.
• Efficiency max. 61 %.

Pump Unit PU600 HR-07 (Motor, Pump End)

• Borehole diameter min.: 4,0 in.
• Water temperature max.: 50 °C.

Dimensions

• Controller HxWxD = 352 mm x 207 mm x 124 mm; Weight = 5.6Kg.
• Pump Unit HxWxD =
