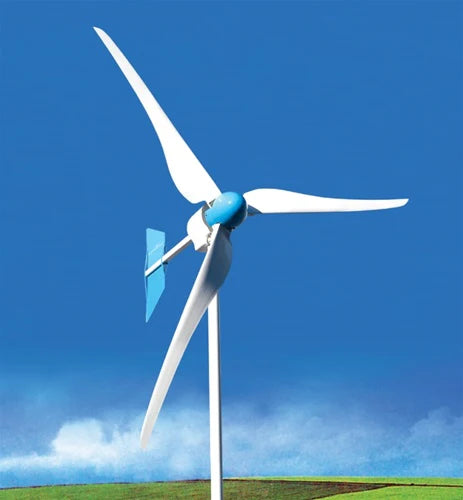

Kestrel e300i-1000W Wind Turbine

Specifications
The e300i is the next generation of small wind turbine. It is a low starting machine allowing it to generate electricity at relatively low wind speeds. The high performance three blade rotor with pitch control powers a twin axial flux permanent magnet brushless alternator, with good heat management. The e300i maintains its rated output in excess wind speeds, optimising the potential power output and energy yield. More usable power generated, stored and used. The e300i powers telecoms sites around the world.

Design
The three aerofoil blades, with a diameter of 3.0m, are managed by a passive pitch control system that allows the e300i to continuously generate usable energy in wind speeds that exceed rated wind speed. This is one of the factors that contribute to the e300i being one of the best machines in its class in terms of overall energy harvest on an annualised basis. The e300i advanced design moderates noise emissions effectively, making it an inconspicuous power source in all installations and environments.

Application
Boost solar & other renewable energy installations increasing productivity, reliability & cost effectiveness
Water pumping systems with optional water pump controller to reduce utility costs
Continual & reliable power for repeater stations, suitable for the telecommunications industry
Grid tie
