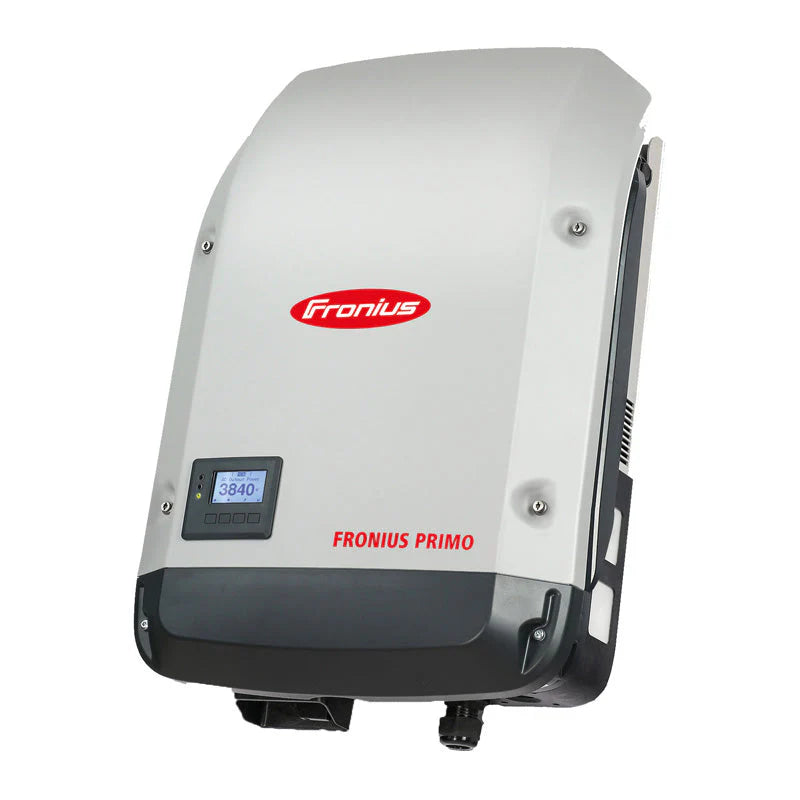

Fronius Primo 5kW Single-Phase Grid-Tie Inverter

Technical Data
Input Data

• Number of MPP trackers: 2.
• Max. input current (Idc max): 12 / 12 A.
• Max. short circuit current, module array: 18 / 18 A.
• DC input voltage range (Udc min - Udc max): 80 - 1000 V.
• Feed-in start voltage (Udc start): 80 V.
• Nominal input voltage (Udc,r): 710 V.
• MPP voltage range (Umpp min - Umpp max): 270 - 800 V.
• Usable MPP voltage range: 80 - 800 V.
• Number of DC connections: 2 + 2.
• Max. PV generator power (Pdc max): 12,3 kWpeak.

Output Data

• AC nominal output (Pac,r): 5000 W.
• Max. output power (Pac max): 5000 VA.
• AC output current (Iac nom): 21,7 A.
• Grid connection (Uac,r): 1~ NPE 220/230 V.
• AC voltage range (Umin - Umax): 180 - 270 V.
• Frequency (fr): 50 / 60 Hz.
• Frequency range (fmin - fmax): 45 - 65 Hz
• Power factor (cos φac,r): 0,85 - 1.

General Data

• Height: 645 mm
• Width: 431 mm
• Depth: 204 mm
• Weight: 21,5 kg
• Degree of protection: IP 65
• Protection class: 1
• Overvoltage category (DC / AC): 2 / 3.
• Night-time consumption: < 1 w 1="">.
• Inverter design Transformerless.
• Cooling: Regulated air cooling.
