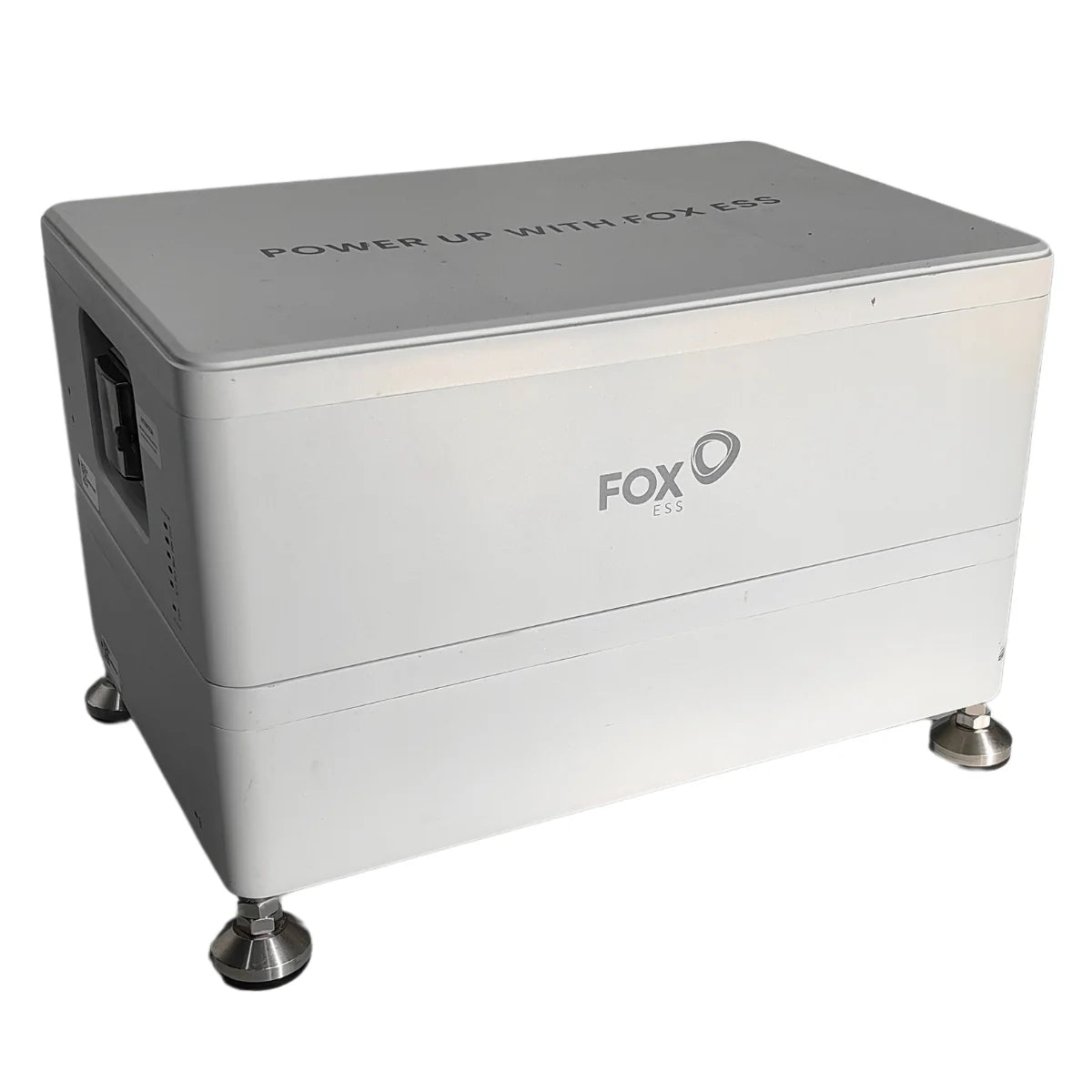

Fox ESS Energy Cube 4800 HV Lithium Ion Battery

R 35,999.00
R 35,999.00
-0%
Tax included. Shipping calculated at checkout.
Only 450 items in stock! Out of stock!

Guaranteed safe checkout

    Product Description

    The ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 19.35 kWh. Installation is easy, with a plug and play
    solution that can save valuable time for installers

    • 4.74kWh capacity
    • Scalable to 33.24 kWh
    • 90% Depth of Discharge
    • Large temperature tolerance
    • Easy installation
    • CAN communication
    • High voltage



    Fox ESS Energy Cube 4800 HV Lithium Ion Battery
    Fox ESS Energy Cube 4800 HV Lithium Ion Battery

    R 35,999.00

    You May Also Like

    Specification ECS4800-H2 ECS4800-H3 ECS4800-H4 ECS4800-H5 ECS4800-H6 ECS4800-H7
    Battery Type LiFePO4 Prismatic Cell
    Battery Module 1*CM4800 2*CS4800 3*CS4800 4*CS4800 5*CS4800 6*CS4800
    Nominal Capacity [Wh] 9320/9490(3C) 13980/14240(3C) 18640/18990(3C) 23300/23740(3C) 27960/28490(3C) 32610/33140(3C)
    Nominal Voltage [V] 89.6 134.4 179.2 224 268.8 313.6
    Operating Voltage [V] 81.2 - 103.8 121.5 - 154.5 162.4 - 206 203 - 257.6 244.6 - 309.1 284.2 - 360.6
    Recommend Discharge Current [A] 25
    Max. Charge/Discharge Current [A] 50
    Peak Discharge Current [A] 65 @30sec
    Battery Pack Round-Trip Efficiency [%] >95
    Depth of Discharge [%] 90
    Cycle Life ≥6000
    Communication CAN
