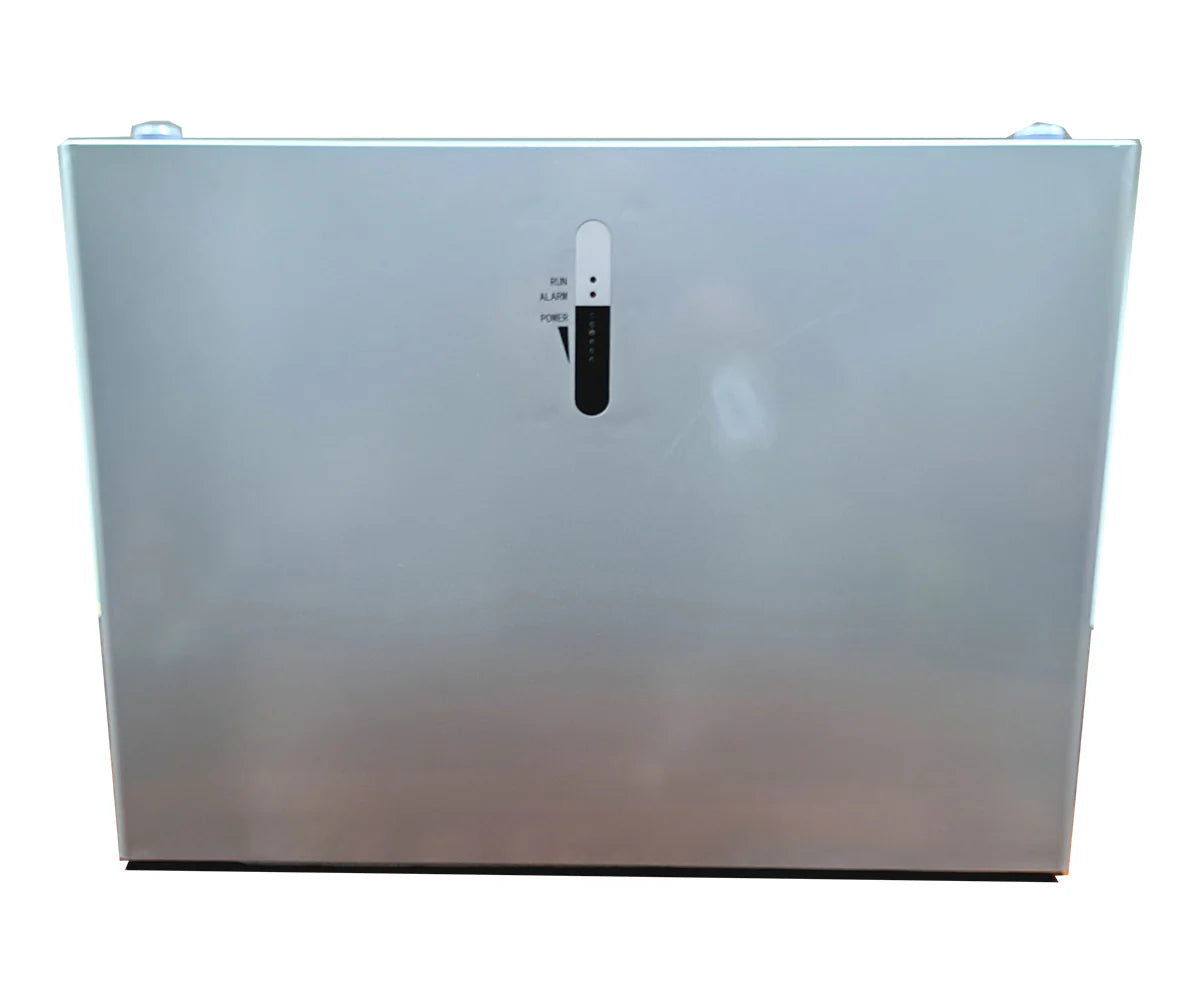

Enervision GL48100 100Ah 48V Lithium Battery - 1 Pack

Inverter compatibility:

• TBB

• Growatt
• LuxPower
• Megarevo
• SofarSolar
• Deye
• MUST
• Victron
• Voltronic
• SAJ

When making your purchase , please advise on your inverter brand so that our technical team can program this product for your specific inverter unit

Features:

• LiFePO4 Cell
• Isolated Design
• High safety performance
• Modular design
• Easy Installation,
• One-touch on/off operating control
• High quality battery management system
• High reliability performance
• LED smart display - 4 lights show the state of capacity , 2 lights show the battery status
•  Multiple communication interfaces - RS232 , RS485 . CAN
• Parallel - up to 16 units
• Extremely low power consumption in multiple modes of operation, standby and sleep.
• Use of environmentally friendly process technologies , RoHS compliance
• Warranty: 5 years

Basic Parameters

• Rated energy: V
• Minimum energy: 5000Wh
• Rated voltage: 51.2Vdc
• Battery capacity (Ah) : 100
• Dimension (WxHxD): 649×474.7×181.5mm
• IP grade: IP20
• Heat dissipation mode: Natural cooling
• Weight: ≈60kg

Electric Parameters

• Working voltage: 44-57.6Vdc
• Charging method: CC-CV
• Recommended charge current: 50A
• Maximum charge current: 100 A
• Recommended discharge current: 50A
• Maximum discharge current: 100A
• Maximum discharge power@25°C: 5000W

Performance Parameter

• Charge temperature/Humidity range: 0°C~45°C / 45%~85%
• Discharge temperature/Humidity range: -10°C ~50°C / 45%~85%
• Storage temperature/Humidity range: -20°C ~60°C/ 5%~85%
• Design cycle life: over 5000
