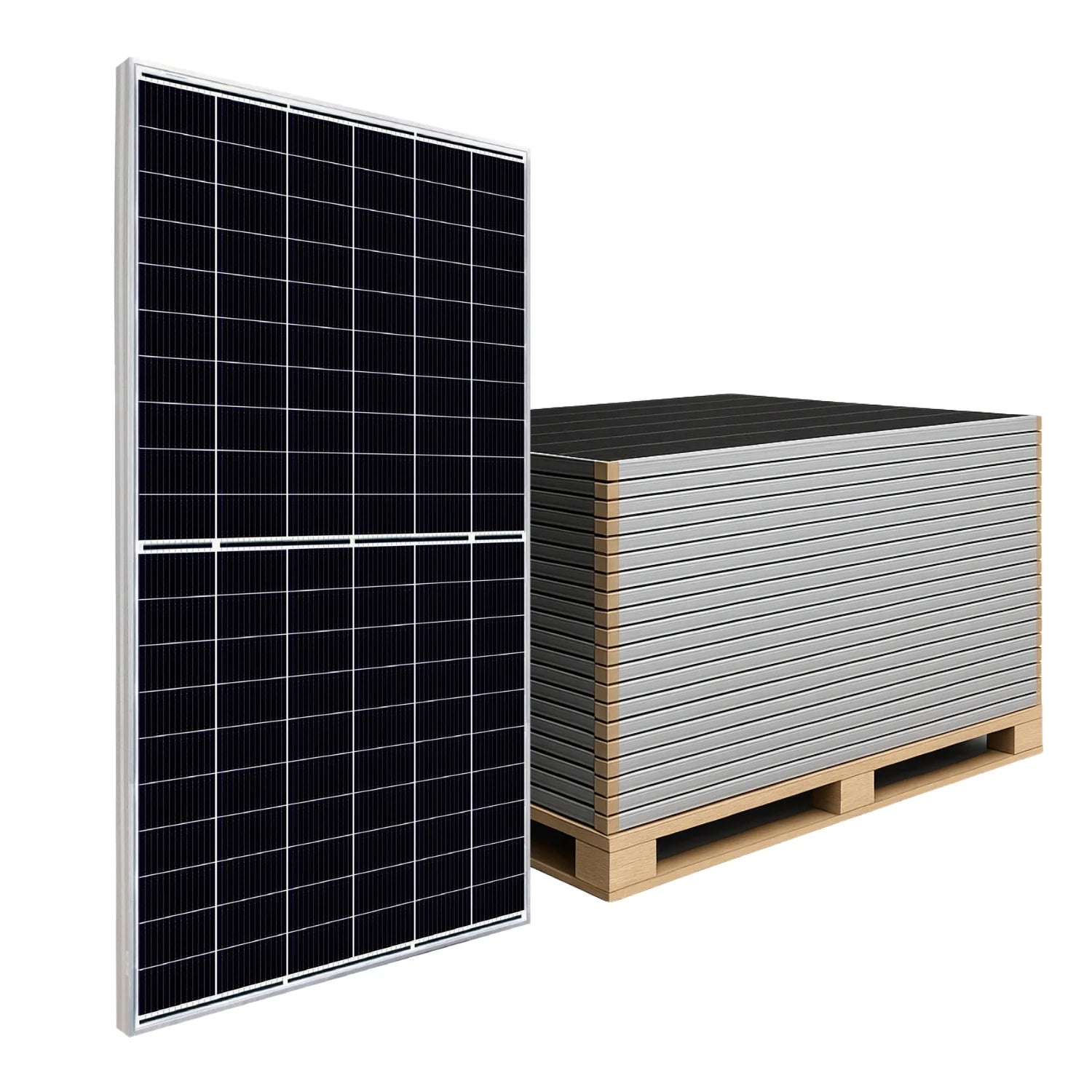

Canadian Solar HiKu6 405W Mono PERC Solar Panel Pallet of 35

Module Power: Up to 420 W

Module Efficiency: Up to 21.5%

Lower LCOE and system cost

Comprehensive LID / LeTID mitigation – up to 50% lower degradation

Better shading tolerance

More Reliable Performance

• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa
• Wind load up to 2400 Pa*

Electrical Data (STC)

• Nominal Max. Power (Pmax): 405 W
• Operating Voltage (Vmp): 31.0 V
• Operating Current (Imp): 13.07 A
• Open Circuit Voltage (Voc): 37.0 V
• Short Circuit Current (Isc): 13.93 A
• Module Efficiency: 20.7%
• Operating Temperature: -40°C to +85°C
• Power Tolerance: 0 ~ +10 W

Mechanical Specifications

• Frame Colour: Black only
• Cell Type: Mono-crystalline
• Cell Arrangement: 108 [2 × (9 × 6)]
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 21.3 kg
• Front Cover: 3.2 mm tempered glass with anti-reflective coating
• Frame: Anodized aluminium alloy
• Junction Box: IP68, 3 bypass diodes
• Cable: 4 mm² (IEC), 12 AWG (UL)
• Connector: T6, MC4, MC4-EVO2, or MC4-EVO2A
• Cable Length (including connector):
  • Portrait: 350 mm (+) / 250 mm (−)
  • Landscape: 1100 mm (+/−)

Temperature Characteristics

• Temperature Coefficient (Pmax): -0.34% / °C
• Temperature Coefficient (Voc): -0.26% / °C
• Temperature Coefficient (Isc): 0.05% / °C
• Nominal
