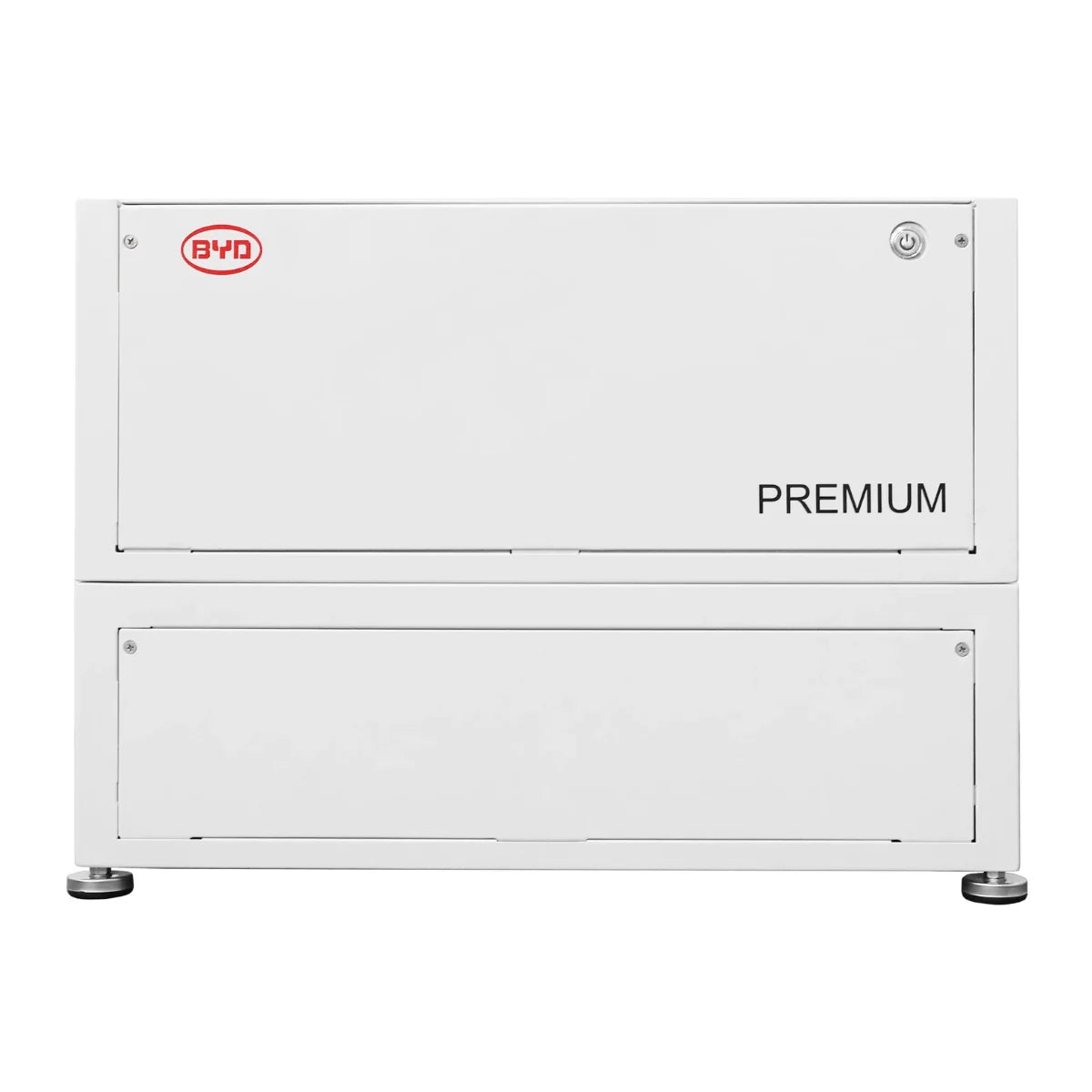

BYD 15.4 kWh 48V Premium LVL Lithium Battery Box

Features

• Scalable from 15.4 to 983 kWh.
• Compatible with 1 and 3 Phase Inverters.
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life.
• Cycle, and Power.
• Capable of High-Powered Back-up and Off-Grid Function.
• Space Saving via the Ability to Stack 2 Premium Batteries.
• Add Additional Batteries in Parallel to Expand the System.

Specifications - LVL15.4

• Number of Modules: 2.
• Usable Energy: 15.36 kWh.
• Max Cont. Output Current: 250 A.
• Peak Output Current: 375 A, 5 s.
• Dimensions (H/W/D): 500 x 575 x 650 mm.
• Weight: 164 kg.
• Nominal Voltage: 51.2 V.
• Operating Voltage: 40-59 V.
• Operating Temperature: -10 °C to +50°C.
• Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
• Communication: CAN/RS485.
• Enclosure Protection Rating: IP20.
• Round-trip Efficiency: ≥95%.
• Scalability: Max. 64 in Parallel (983 kWh).
• Certification: IEC62619 / CE / CEC / UN38.3.
• Applications: ON Grid / ON Grid + Backup / OFF Grid.
• Warranty: 10 Years.
• Compatible Inverters: Refer to BYD Battery-Box Premium Inverter Compatible List and Minimum Configuration List.
