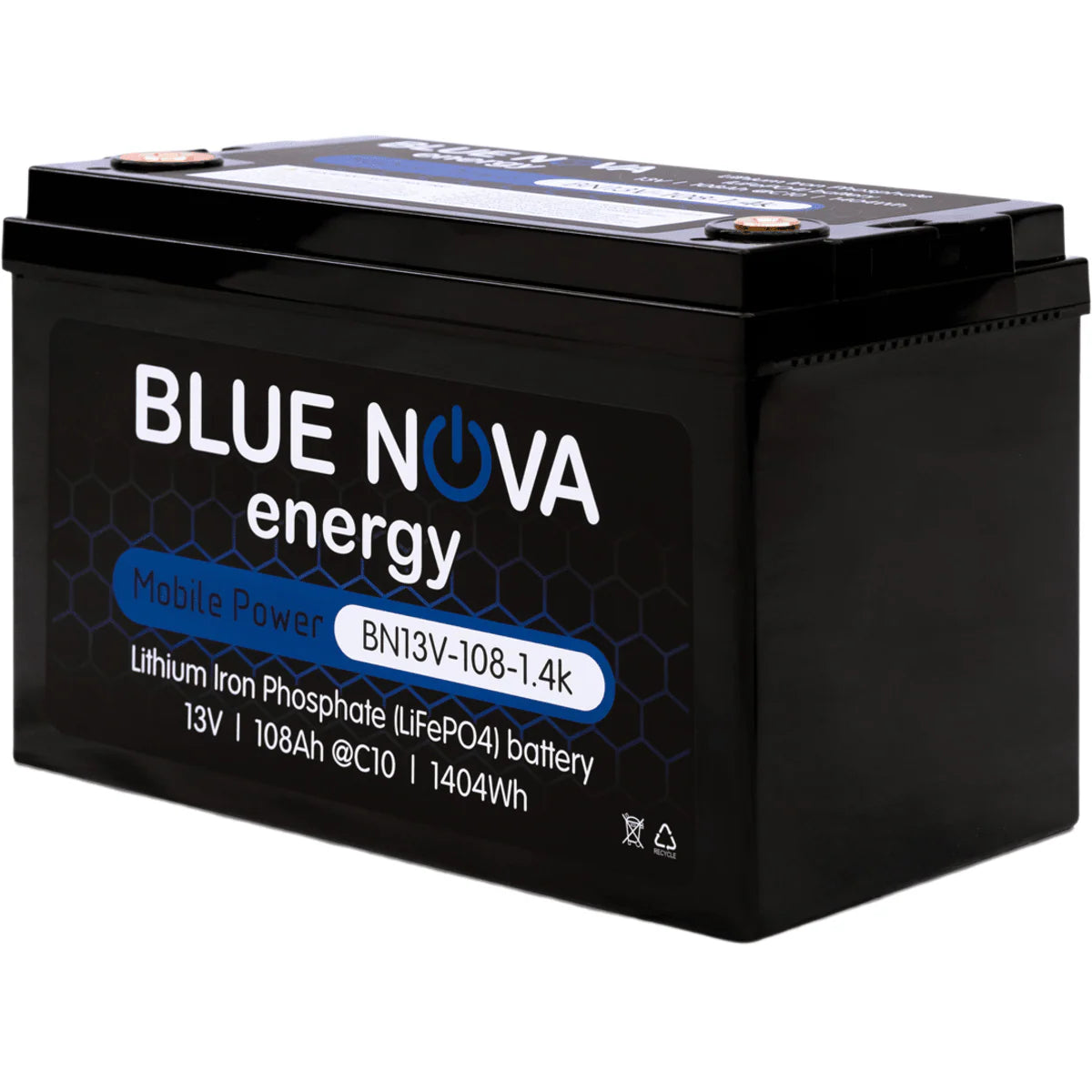

BlueNova BN13V-108-1.4k MPS LiFePO4 Battery

Product Features

• Ultra-safe Lithium Iron Phosphate (LiFePO4) technology.
• Integrated battery management System (BMS).
• Light weight & compact.
• Water & dust resistant (IP56).
• Highly durable ABS enclosure.
• Drop in lead acid replacement in terms of physical size. Please ensure that your charge controller/ inverter are lithium compatible.

Technical Specifications General

• Battery Type: LiFePO4 (Lithium Iron Phosphate).
• Usable Capacity: 1400 Wh @C10, 25°C.
• Nominal Voltage: 13 VDC.
• Operating Voltage Range: 11.6 VDC – 14.4 VDC.
• Operating Temperature Range: Charge: 0°C – 45°C | Discharge: -20°C – 65°C.
• Cycle Life @ 100% DoD > 2000 cycles (1400 Wh @C10, 25°C).
• Cycle Life @ 80% DoD > 3000 cycles (1120 Wh @C10, 25°C).
• Cycle Life @ 50% DoD > 5000 cycles (700 Wh @C10, 25°C).
• Dimensions (mm): 330 x 173 x 220mm (W x D x H).
• Weight (kg) 14 kg.
• Warranty Period: 3 Years.
• Max. 4 in series, max. 2 in parallel
• Recommended to not expand if the difference between the oldest & newest battery is more than 12 months.

Charge / Discharge

• Bulk Voltage: 14.4 VDC.
• Discharge Voltage (min.): 11.6 V.
• Charge Current (max.): 52.5 A continuous.
• Discharge Current (max.): 110 A continuous; 160 A burst (30 seconds).
