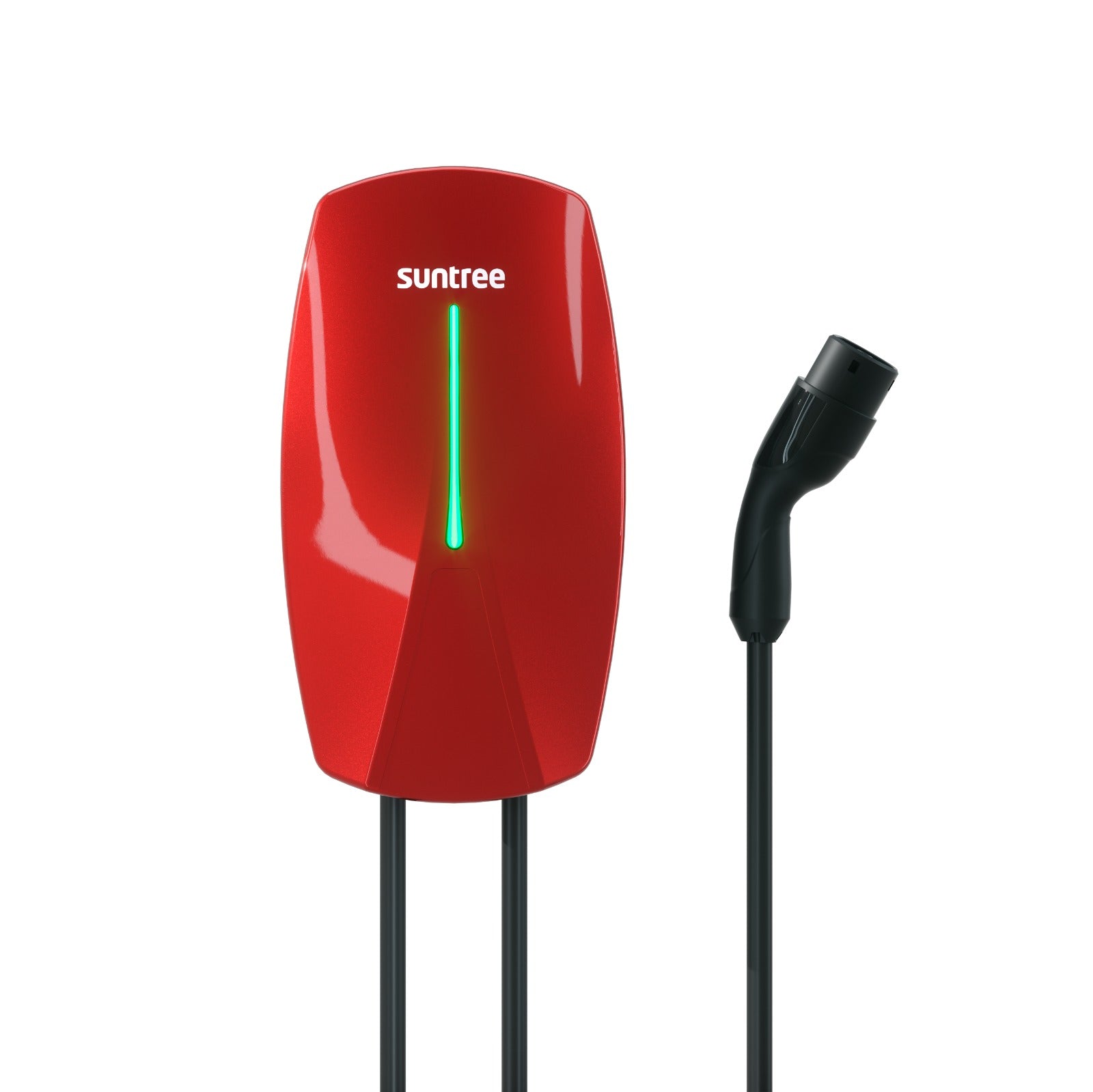

22kW SUNTREE AC EV Charging Station

3-Phase AC Charging
Fastest possible three-phase AC charging at 32 Amps / 22kW.

Tuya Smart App
WiFi and Bluetooth connectivity via Tuya Smart App.  Adjust charge rate, schedule charging, monitor status or view charge history.

RFID Card Access Control.
Access to the charging station may be controlled using RFID cards (3 micro RFID cards included).

5m Cable
The station is equipped with a 5m TUV-rated cable and Type 2 EV plug.

IP65 Weatherproof
Weatherproof housing ensures durability and protection against the elements.

Protections
Over/Under Current Protection, Short Circuit Protection, Ground Protection, Surge Protection. Overload Voltage Protection, Over/Under Temperature Protection.

Specifications
Rating: 400VAC, 3-Phase, 22kW
Adjustable Current : 6A to 32A in 1A increments
Operating Temperature: -30 to +50° C
Station size: 33 x 17 x 11 cm
Box Mass: 5.3kg
Box Dimensions: 52x42x16 cm
Cover colour: Red
